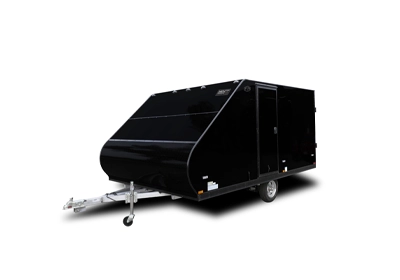

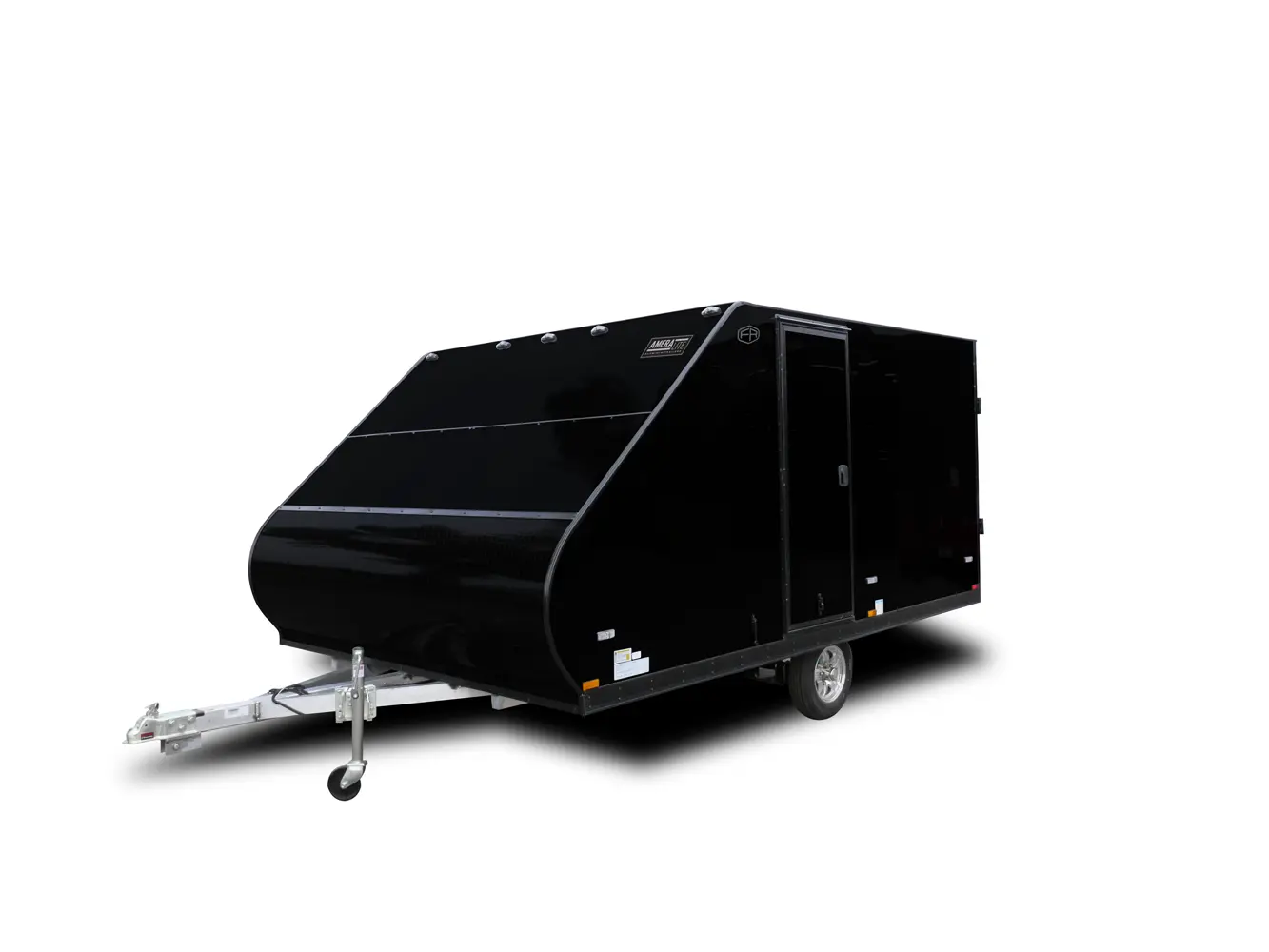

The AmeraLite Blast (ABSTX) Aluminum Hybrid Sled Trailers

The economical hybrid aluminum sled trailer that is a real blast. It’s smaller and lighter so it’s easy to tow and park but it’s roomy enough to haul two sleds side by side.

The Blast has a lower ground clearance so it fits into most garages and with the spring assisted ramp it’s easy to load and unload.

With screwless exterior metal, aluminum tube wall posts, cross members and roof bows, aluminum bottom trim, ATP stone guard, and zinc coated hardware the Blast is not only lighter but strong and durable too.

VIEW THE TOP 10 REASONS TO BUY AMERALITE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:ABSTX8512SAABSTX8512TA2ABSTX8514TA2
GVWR:3500 lb.7000 lb.7000 lb.
Payload Capacity:2400 lb.5720 lb.5620 lb.
Exterior Length:14' 3"14' 3"16' 3"
Exterior Width:8' 5"8' 5"8' 5"
Exterior Height:7' 3"7' 3"7' 3"
Interior Length:12' 0"12' 0"14' 0"
Interior Width:8' 1"8' 1"8' 1"
Interior Height:5' 4"5' 4"5' 4"
Rear Door Type:Ramprampramp
Rear Door Width:8' 1"8' 1"8' 1"
Rear Door Height:4' 11"4' 11"4' 11"
Coupler Size:2"2"2"
Curb Weight:1100 lb.1280 lb.1380 lb.
Hitch Weight:110 lb.128 lb.138 lb.
Hitch Height:16"16"16"
Platform Height:19"19"19"
Axle:1-3,5002-3,5002-3,500
Suspension:TBDTBDTBD
Brakes:OptionalOptionalOptional
Tires:ST205/75R15/CST205/75R15/CST205/75R15/C
Wheels:5 Bolt5 Bolt5 Bolt
Main Frame:3" Tube3" Tube3" Tube
Floor:3/4" Engineered Floor3/4" Engineered Floor3/4" Engineered Floor
Walls:3/16" Interior Luan Walls3/16" Interior Luan Walls3/16" Interior Luan Walls

Features & Options

Print
  • All Aluminum Tube Construction
  • Triple Tube Tongue
  • 2" Coupler
  • Swing Up Jack with Castor Wheel
  • Wall Posts 24" on Center
  • Cross Members 24" on Center
  • Roof Bows 24″ on Center
  • 3000# Spring Axle - Non-Brake
  • ST205/65D10 Bias Ply Tires
  • One-Piece Aluminum Roof
  • Rear Ramp Door with Spring Assist
  • Front Access Door with Continuous Hinge
  • 24" Wide Side Door on Roadside
  • 3/4" Engineered Wood Floor
  • 2) Adjustable Ski Tie Down Tracks with Tie Down Bars
  • .030 Metal with SuperLock Screwless Sides
  • 3/16" Interior Luan Walls
  • 12" Interior Kickplate
  • LED Clearance Lights and Tail Lights
  • Operational LED Back-up Lights
  • 1) Interior LED Dome Light
  • Switch on Wall for Dome Light
  • 1) Pair Fold Down Stabilizer Jacks
  • Sand Pad Shipped Loose
  • 1000# Ramp Door
  • 4) 5000# Floor D-Rings
  • 6) 1200# Wall D-Rings
  • Rear Fold-Down Stabilizer Jacks
  • Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 6" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • 12" Extra Height Including Rear Door
  • 6" Extra Height to Side Door
  • 2000# Ramp Door
  • Rear Fold-Down Stabilizer Jacks
  • 4) 5,000# Floor D-Rings
  • 6) Wall D-Rings
  • 1) Interior Mount for Spare Tire Shipped Loose
  • ST205/75R15 Aluminum Wheel Spare Tire Shipped Loose
  • 55" Bar Lock on Side Door
  • Available with Spread Torsion Axles and Drop Skirting only
  • 8.5' Wide Tandem Axle Trailer Models Only
  • Not Available on Trailers Less than 20' Long
  • Flip-up Door Centered Over Axles
  • Includes Fender Attached to Door
  • Removable Wheel Well
  • Eberhard Recessed Door Latch
  • Gas Shocks on Door
  • Available with Torsion Axles Only (Does Not Include Torsion Upgrade)
  • Includes Drop Skirting
  • 2 Separate Fenders Around Tires
  • Sides Dropped in Fender Area
  • Can be Used with Standard or Spread Tandem Axles
  • 2) 4' LED Lights with 1) Switch
  • 2) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 30 Amp Service Panel
  • 30 Amp Marine Plug
  • 25' Long Cord for 30 Amp Marine Plug
  • 4) 4' LED Lights
  • 2) Switches for 4' Lights
  • 4) 110 Volt Interior Recepts
  • 50 Amp Service Panel
  • 50 Amp Marine Plug
  • 25' Long Cord for 50 Amp Marine Plug
  • Black Trim
  • Black Stoneguard
  • Black Fenders
  • Black Aluminum Rims
  • Black Bar Locks and Hinges
  • Black Screws on Trim and Stoneguard
  • Screwless Glued Seams (No S-Lock)
  • No Warrantee on any Paint Peel or Chipping
  • 12" High ATP Interior Kickplate over top of 3/8" Drymax
  • 9" Deep
  • Color Matched Aluminum Skin
  • 2) LED Backup Lights under Spoiler with 1) Switch
  • Double Doors- Reduces Opening By 6"
  • Does not Affect Ramp Door Opening Height

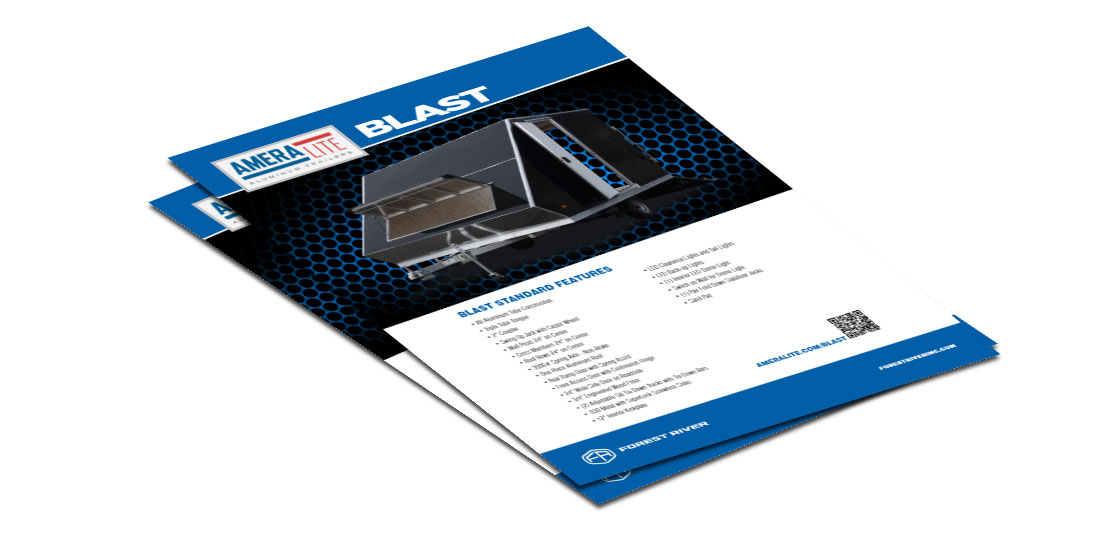

Literature
